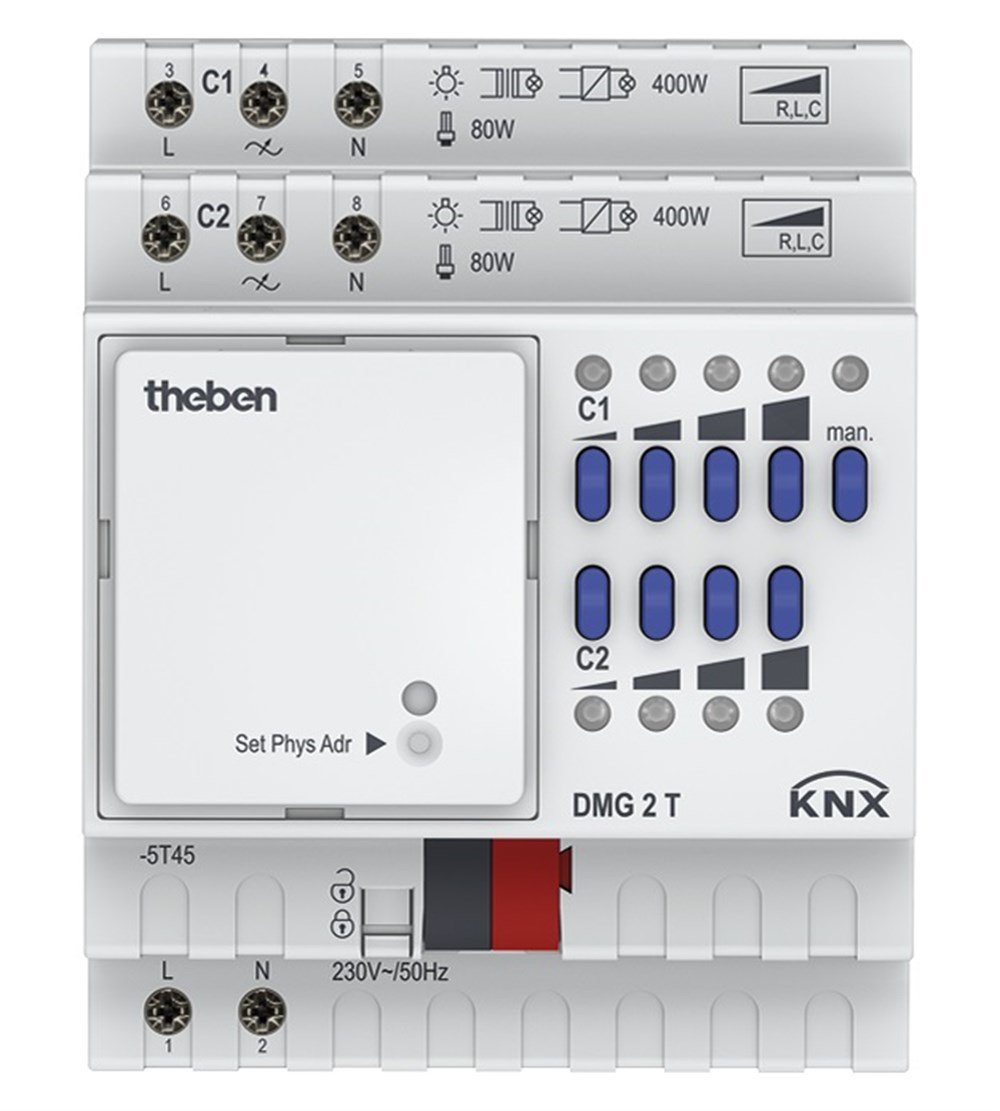

DMG 2 T KNX (4930270)

Operating voltage KNX Bus voltage, ≤4 mA Operating voltage 230 V AC 50 Hz Frequency 50 Hz Stand-by consumption ~0.9 W Capacity loss max. 4.5 W Width 4 modules Installation type DIN rail Type of connection Terminal screws | Bus connection: KNX bus terminal Max. cable cross section Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² | Stranded wire with end sleeve: 0.5 mm² to 2.5 mm² Number of channels 2 Lamp types Incandescent, low-voltage and high-voltage halogen and dimmable energy saving lamps and LED Switching capacity per channel 400 W Switching capacity in parallel operation 800 W LED lamp Trailing edge (RC-mode): 400 W Energy saving lamps Trailing edge (RC-mode): 400 W Switching capacity min. 5 W Max. cable length 100 m Ambient temperature -5°C ... 45°C Type of protection IP 20 Protection class II according to EN 60 669
