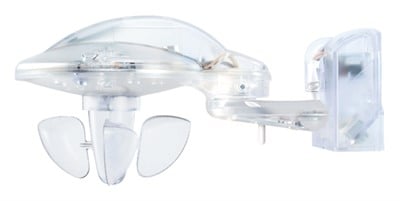

THEBEN METEODATA 140 S GPS KNX
THEBEN METEODATA 140 S GPS KNX

THEBEN METEODATA 140 S GPS KNX (1409208)

Marka : Theben
Fiyat : €0,00  + KDV
KDV Dahil : ₺0,00
TL Fiyat : ₺0,00(₺0,00 + KDV)
  • Self contained outdoor weather station
  • Integrated GPS receiver
  • Automatic calculation of elevation and azimuth
  • The weather station can also be operated without mains supply. The GPS module will not function then
  • For measuring wind, rain, brightness and temperature
  • For fully automatic blinds and sun protection control with automatic adjustment of blinds according to position of the sun
  • Rain sensor with integrated heating
  • The weather station can also be operated without mains supply. The heating of the rain sensor will not function then
  • Measurement and evaluation directly on device
  • Sun protection for up to 8 facades via 3 integrated brightness sensors
  • 4 additional threshold channels for connection of external KNX sensors
  • 6 logic channels
  • Display of weather data e.g. with VARIA 826 KNX multi-function display

    Technical data

    Operating voltage 110 – 230 V AC Frequency 50 – 60 Hz Operating voltage KNX Bus voltage, ≤10 mA Stand-by consumption <0,5 W Installation type Wall installation Measuring range brightness 1 – 100000 lx Measuring range temperature -30 °C … +60 °C Measuring range wind speed 2 – 30 m/s Ambient temperature -20 °C … +55 °C Protection class II Type of protection IP 44
