Description

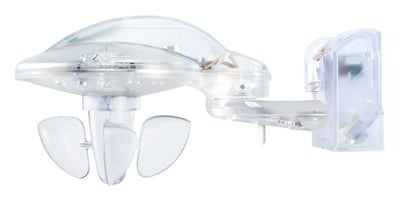

- Self contained outdoor weather station
- For measuring wind, rain, brightness and temperature
- For fully automatic blinds and sun protection control with automatic adjustment of blinds according to position of the sun
- Rain sensor with integrated heating
- The weather station can also be operated without mains supply. The heating of the rain sensor will not function then
- Measurement and evaluation directly on device
- Sun protection for up to 8 facades via 3 integrated brightness sensors
- 4 additional threshold channels for connection of external KNX sensors
- 6 logic channels
- Display of weather data e.g. with VARIA 826 KNX multi-function display
Technical data
Operating voltage 110 – 230 V AC Frequency 50 – 60 Hz Operating voltage KNX Bus voltage, ≤10 mA Stand-by consumption <0,5 W Installation type Wall installation Measuring range brightness 1 – 100000 lx Measuring range temperature -30 °C … +60 °C Measuring range wind speed 2 – 30 m/s Ambient temperature -20 °C … +55 °C Protection class II Type of protection IP 44
